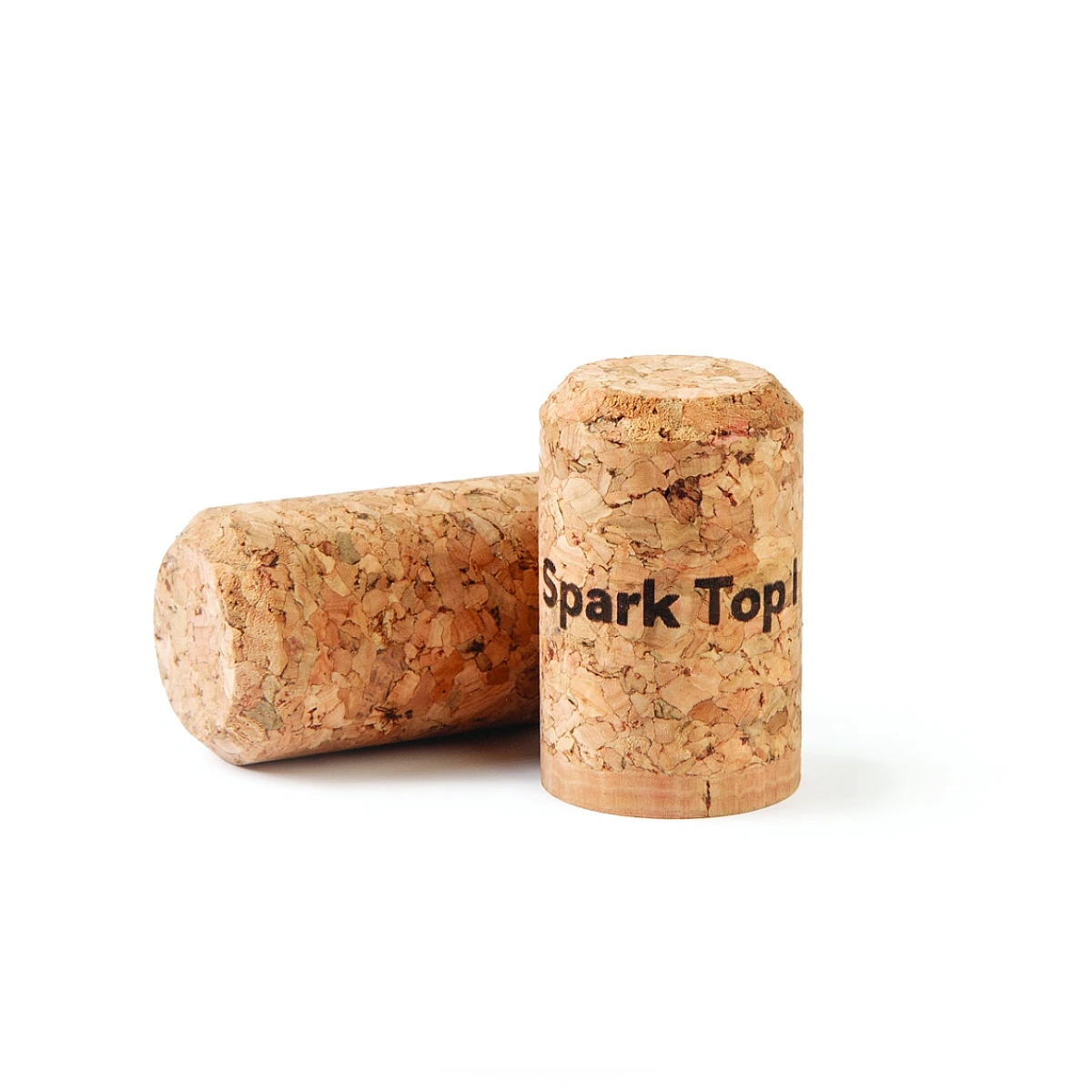

BackSpark® Top I The safety of a cork stopper with a natural disc
The Cork Stopper that Offers Performance at an Attractive Price
The agglomerated body is produced by individually moulding cork granules of controlled quality and consistency.
Manufactured from 100% recyclable natural cork, Spark® Top I stoppers benefit from the ROSA and FBT processes in the treatment of the granules and CorkNova in the disc, offering sensory safety and meeting high quality standards.
The disc used also benefits from X-ray mass analysis control, which contributes to their physical and mechanical performance.
Spark® Top I is a stopper that offers the sensory advantages of 100% natural cork in contact with the beverage at a competitive price.
Cork Properties
| Tests | Characteristics | Specifications | ||
|---|---|---|---|---|
| Physical-Mechanical | Length (I) | l ± 0.5 mm | ||
| Diameter (d) | d ± 0.3 mm | |||
| Granules size | 3 - 7 mm | |||
| Ovalisation | ≤ 0.3 mm | |||
| Moisture | 4% - 9% | |||
| Torsion moment | ≥ 40 daN.cm | |||
| Disc thickness | ≥ 4.5 mm | |||
| Average weight | X ± 1 gr | |||
| Specific weight | 235 – 295 Kg/m3 | |||
| Pression resistance | ≤ 6 bar | |||
| SPME GC / MS / ECD |
2, 4, 6 - Trichloroanisol (TCA) |
99% ≤0.5 ng/L and 1% ≤1 ng/L* |
*2, 4, 6 –Trichloroanisol (TCA) - Releasable TCA content of 99% at or below the 0.5 ng/L quantification limit and 1% at ≤ 1.0 ng/l, conductedin accordance with ISO 20752.
- 47 x 29 mm
- 48 x 30 mm
- Amorim can calculate the required cork diameter by studying the internal profile of the bottleneck, the characteristics of the wine and the corking conditions.
- Order your cork stoppers for immediate or short-term use. Ideally, these cork stoppers should be used within four months of the date of manufacture if the storage conditions are respected.
- Store the cork stoppers in their original packages, in a well-ventilated room with controlled temperature between 15°C and 25°C and 50% to 70% humidity.
- Do not leave boxes and/or bags open with surplus cork stoppers.
- Ensure any dust its removed before corking.
- Ensure the cork is compressed smoothly, to a diameter 1.5 to 2 mm smaller than the diameter of the bore of the bottle.
- Ensure insertion of the cork is as quick as possible.
- For standard bottlenecks, the cork should be inserted at 24 mm ± 2 mm from the top of the neck with the wire wood applied.
- Minimise moisture on the inside of the bottleneck.
- Don’t leave the cork stoppers in the feeder as to avoid dust.
- Always use stoppers with a surface treatment suitable for the type of beverage, bottling process and selected bottle.
- Ensure that all dust is removed using suitable placed aspiration – particularly before inserting the cork stopper.
- Maintain the corker jaws free of nicks and signs of wear.
- Ensure proper alignment of plunger and location ring.
- Ensure corking machine operates smoothly, especially during compression.
- Clean all cork-handling surfaces regularly with chlorine-free products.
- Ensure the equipment is suited to the cork and bottle used.
- After bottling, the bottles should be kept in an upright position.
- Ideal bottle storage conditions are 12–18°C at 50–70% humidity.
- Keep the wine cellar free of insects.
- Bottles should be stored and transported in an upright position for better preservation of cork recovery after extraction.
- The product must not be stored in a location exposed to sunlight, heated environment and in direct contact with the ground
All Amorim Cork, S.A. products comply with existing regulations and legislation (European and FDA - Food and Drug Administration) for products in contact with food.
